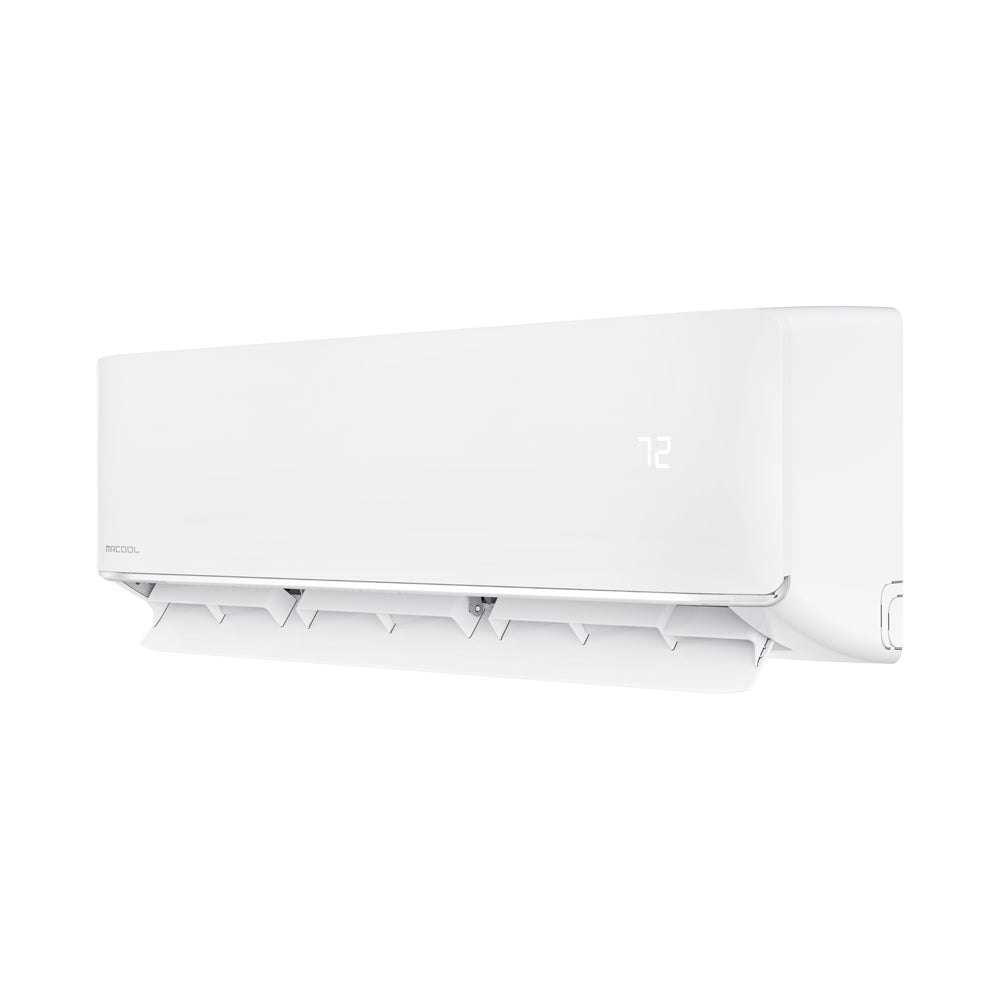

The 5th Generation MRCOOL® DIY® 36K BTU Ductless Mini-Split Heat Pump is an efficient and versatile heating and cooling solution for spaces up to 1550 sq. ft. Designed for true do-it-yourself installation, it requires no special tools or professional help, making setup quick, straightforward, and cost-effective. A key feature of this system is the pre-charged 25-foot DIY® QuickConnect® line set, arriving to you already filled with R-454B refrigerant. This eliminates the need for vacuuming, reducing both installation time and expense.
The included DIYPRO® cable further simplifies setup by removing the need for electrical conduit while enhancing durability against outdoor elements and wildlife. You can easily control the system using the included wireless remote, the SmartHVAC app on Apple and Android devices, or voice commands through Amazon Alexa and Google Assistant. For enhanced comfort, the Follow Me function ensures even temperature distribution by adjusting airflow based on the remote’s location. Dry Mode helps maintain a pleasant indoor environment by reducing excess humidity. Built for longevity, the Gold Fin® Condenser resists corrosion, making it ideal for coastal areas. This system is backed by a robust warranty package, including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty. Experience effortless installation, smart features, and reliable year-round comfort with MRCOOL® DIY®.
Product Specifications:
| BRAND NAME | MRCOOL |
| SERIES | DIY 5th gen Single-Zone Mini-splits |
| MODEL | DIY-36-HP-WMAH-230D25-O |
| GTIN | 840255587068 |
| UPC | 840255587068 |
| SHORT DESCRIPTION | MRCOOL® 36k DIY 5th Generation Mini-split Air Handler 230v |
| TONNAGE | 3 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| MAX COVERAGE AREA | 1550 sqft |
| DECIBEL RATING LOW (DBA) | 27.5 |
| DECIBEL RATING HIGH (DBA) | 55.5 |
| NUMBER OF SPEEDS | 5 |
| OSCILLATION | Yes |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 5/8 |
| FILTER TYPE | Reusable |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 11.1 |
| NET HEIGHT (IN) | 14.25 |
| NET WIDTH (IN) | 49.57 |
| NET WEIGHT (LBS) | 48.72 |
| GROSS DEPTH (IN) | 18.74 |
| GROSS HEIGHT (IN) | 16.57 |
| GROSS WIDTH (IN) | 53.94 |
| GROSS WEIGHT (LBS) | 67.9 |
