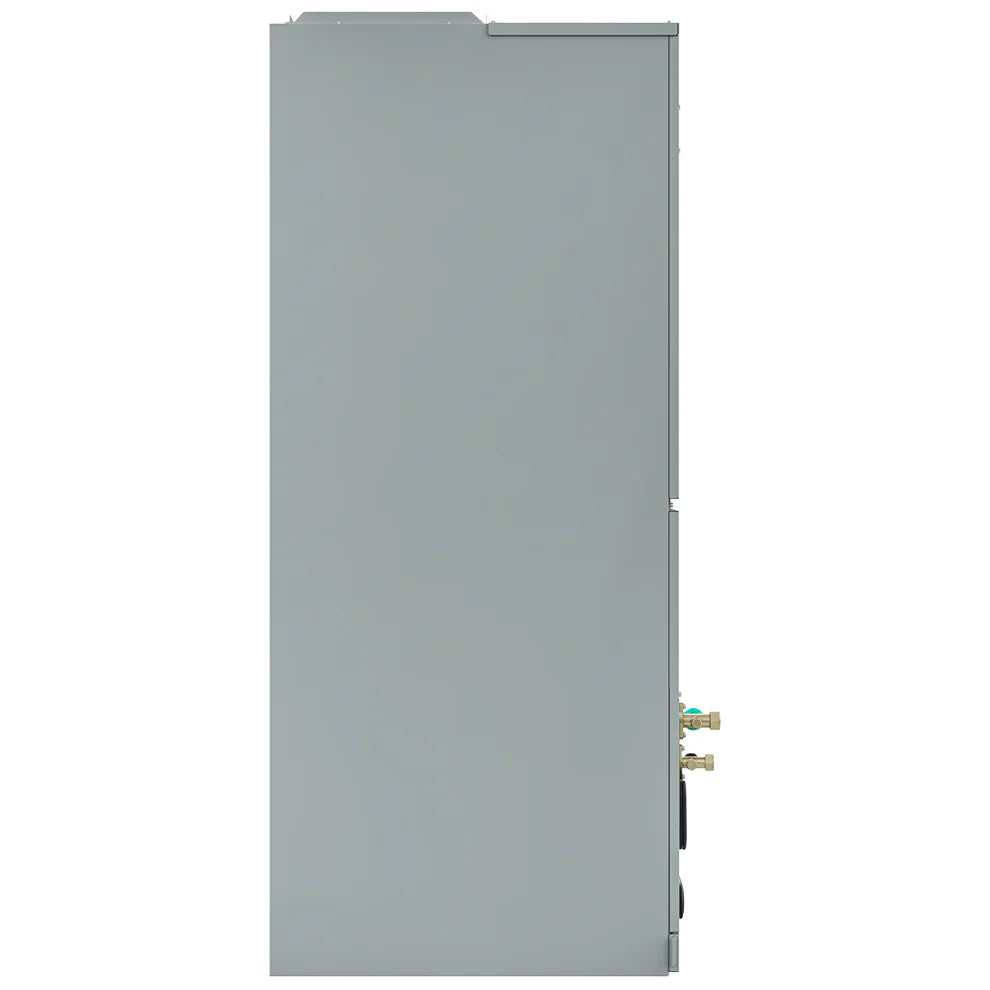

The 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient option for year-round heating and cooling your home. With a SEER2 rating of up to 18.3, it’s suitable for spaces up to 1,000 square feet, making it a practical choice for replacing older HVAC systems.
Built with durability in mind, the air handler features a painted galvanized steel exterior, ensuring long-lasting performance. The self-diagnostics panel makes maintenance easier, helping identify error codes quickly and simplifying troubleshooting. The unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations to fit various home layouts. It also uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining performance. Plus, this air handler works seamlessly with our Central Ducted Hyper Heat system for reliable whole-home comfort. If you need additional heating, an optional heat kit can be added. The included wireless remote offers the Follow Me function, adjusting the airflow temperature based on its location for personalized comfort. Combined with the MRCOOL® Smart thermostat, which ensures reliable and easy temperature control, maintaining your home’s ideal comfort level has never been simpler. With a 10-year warranty, the 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers dependable performance, energy efficiency, and flexibility, making it an innovative and cost-effective upgrade for your home’s HVAC system.
Product Specifications:
| BRAND NAME | MRCOOL |
| SERIES | VersaPro® Central Ducted Air Handler |
| MODEL | MVP-24-HP-MUAH-230A00-O |
| GTIN | 840255586450 |
| UPC | 840255586450 |
| UNIT TYPE | Split System Heat Pump |
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION | 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) | 24000 |
| HEATING CAPACITY (BTU) | 26000 |
| VOLTAGE (V) | 115/208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 5.5/4.0 |
| COLOR | gray |
| DECIBEL RATING LOW (DBA) | 28 |
| DECIBEL RATING HIGH (DBA) | 44 |
| NUMBER OF SPEEDS | 3 |
| MAX LINESET LENGTH (FT) | 164 ft |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| FILTER TYPE | Replaceable |
| FILTER SIZE | 16x20x1 |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | Yes |
| AUXILIARY HEATER SIZES | 5kW/8kW/10kW/15kW |
| ADJUSTABLE THERMOSTAT | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 10 Years |
| BASE COMPRESSOR WARRANTY | 10 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| NET DEPTH (IN) | 17.52 |
| NET HEIGHT (IN) | 45 |
| NET WIDTH (IN) | 21.02 |
| NET WEIGHT (LBS) | 105.6 |
| GROSS DEPTH (IN) | 20.87 |
| GROSS HEIGHT (IN) | 48.62 |
| GROSS WIDTH (IN) | 26.57 |
| GROSS WEIGHT (LBS) | 127.43 |
