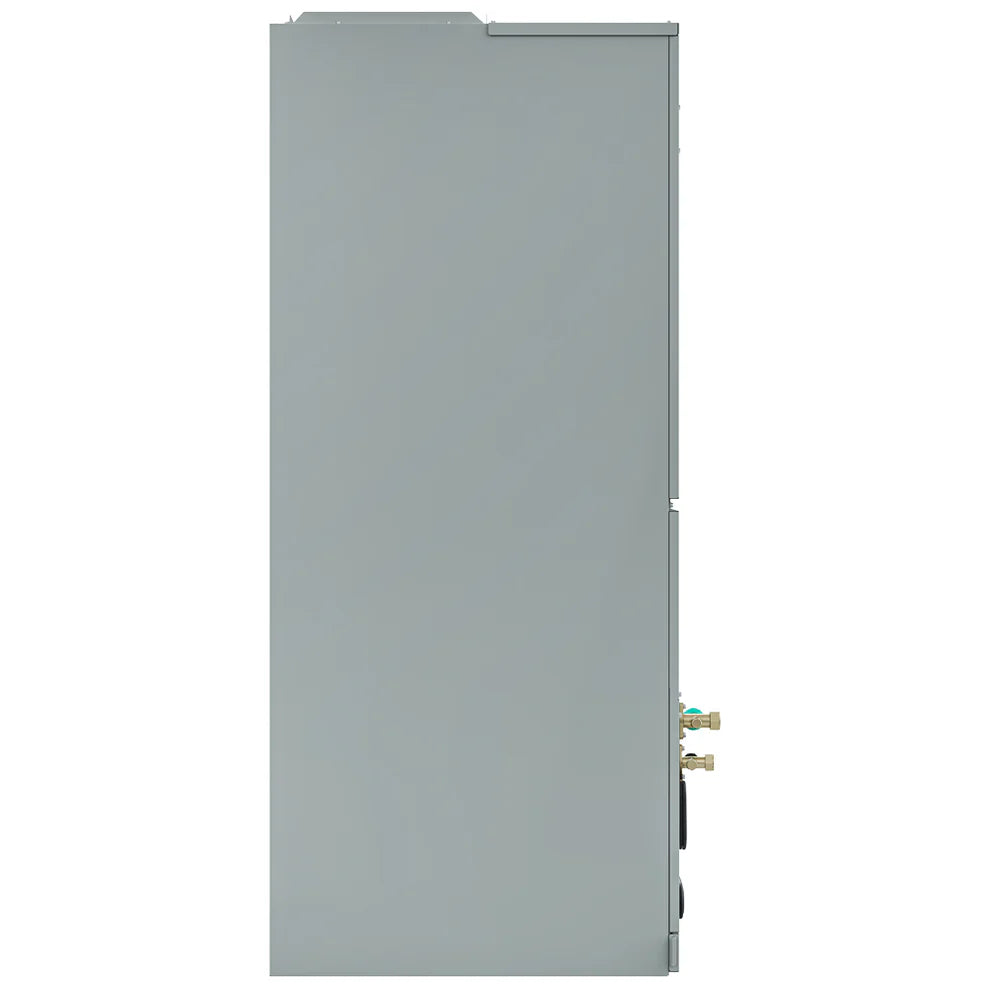

The 2.5 Ton 30,000 BTU MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable choice for heating and cooling spaces up to 1,250 square feet. With a SEER2 rating of up to 17, it provides year-round comfort while keeping energy costs in check. Designed for durability, this air handler features painted galvanized steel construction, ensuring it will last for years to come. Plus, its self-diagnostics panel simplifies maintenance by identifying error codes quickly, reducing downtime.

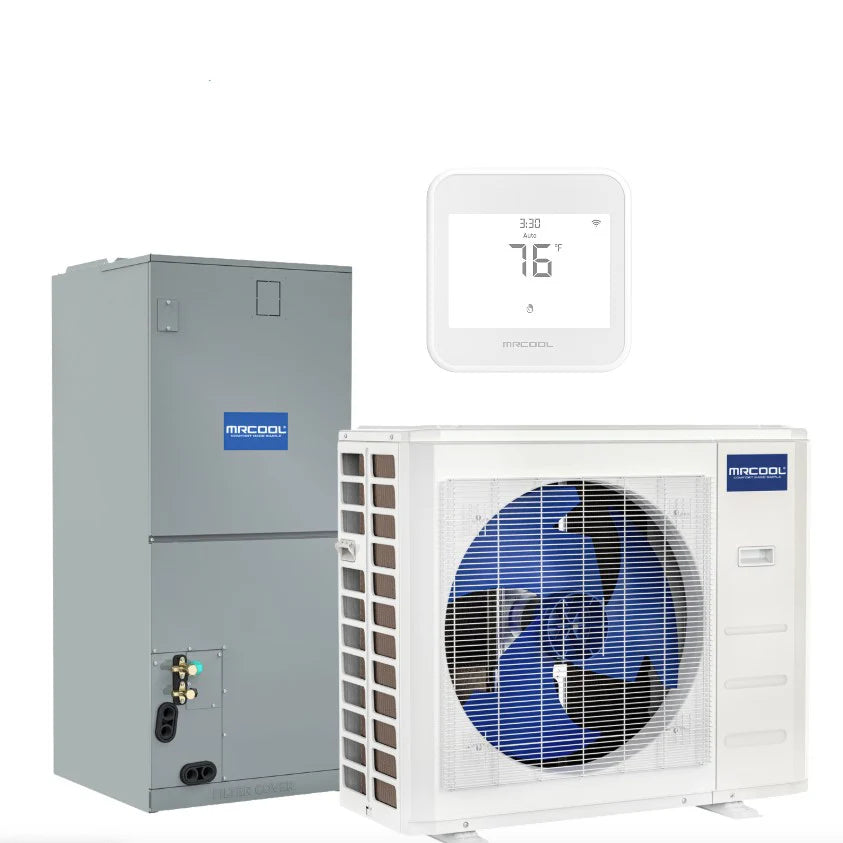

This unit is flexible when it comes to installation, with options for upflow, downflow, and horizontal left or right configurations to suit various setups. It uses R-454B refrigerant, an eco-friendly choice that helps reduce environmental impact. Additionally, this air handler is compatible with our Central Ducted Hyper Heat Condenser. For those who need additional warmth, an optional heat kit is available. The included MRCOOL® Smart Thermostat allows for precise and reliable temperature control, ensuring your home stays comfortable. Plus, it's compatible with the MRCOOL® SmartHVAC app, giving you the convenience of adjusting your system remotely from your smartphone. Backed by a 10-year warranty covering both parts and the compressor, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable solution for maintaining your home’s climate. It combines efficiency, flexibility, and ease of use, making it an excellent choice for upgrading your HVAC system.
Product Specs:
| BRAND NAME | MRCOOL |
| SERIES | VersaPro® Central Ducted Air Handler |
| MODEL | MVP-30-HP-MUAH-230A00-O |
| GTIN | 840255586467 |
| UPC | 840255586467 |
| UNIT TYPE | Split System Heat Pump |
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION | 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
| TONNAGE | 2.5 |
| COOLING CAPACITY (BTU) | 30000 |
| HEATING CAPACITY (BTU) | 31000 |
| VOLTAGE (V) | 115/208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 8.0/6.0 |
| COLOR | gray |
| DECIBEL RATING LOW (DBA) | 29 |
| DECIBEL RATING HIGH (DBA) | 46 |
| NUMBER OF SPEEDS | 3 |
| MAX LINESET LENGTH (FT) | 164 ft |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| FILTER TYPE | Replaceable |
| FILTER SIZE | 19x20x1 |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | Yes |
| AUXILIARY HEATER SIZES | 5kW/8kW/10kW/15kW |
| ADJUSTABLE THERMOSTAT | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | No |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 10 Years |
| BASE COMPRESSOR WARRANTY | 10 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| NET DEPTH (IN) | 21.02 |
| NET HEIGHT (IN) | 49.02 |
| NET WIDTH (IN) | 21.02 |
| NET WEIGHT (LBS) | 128.97 |
| GROSS DEPTH (IN) | 24.41 |
| GROSS HEIGHT (IN) | 52.56 |
| GROSS WIDTH (IN) | 26.57 |
| GROSS WEIGHT (LBS) | 153.44 |
